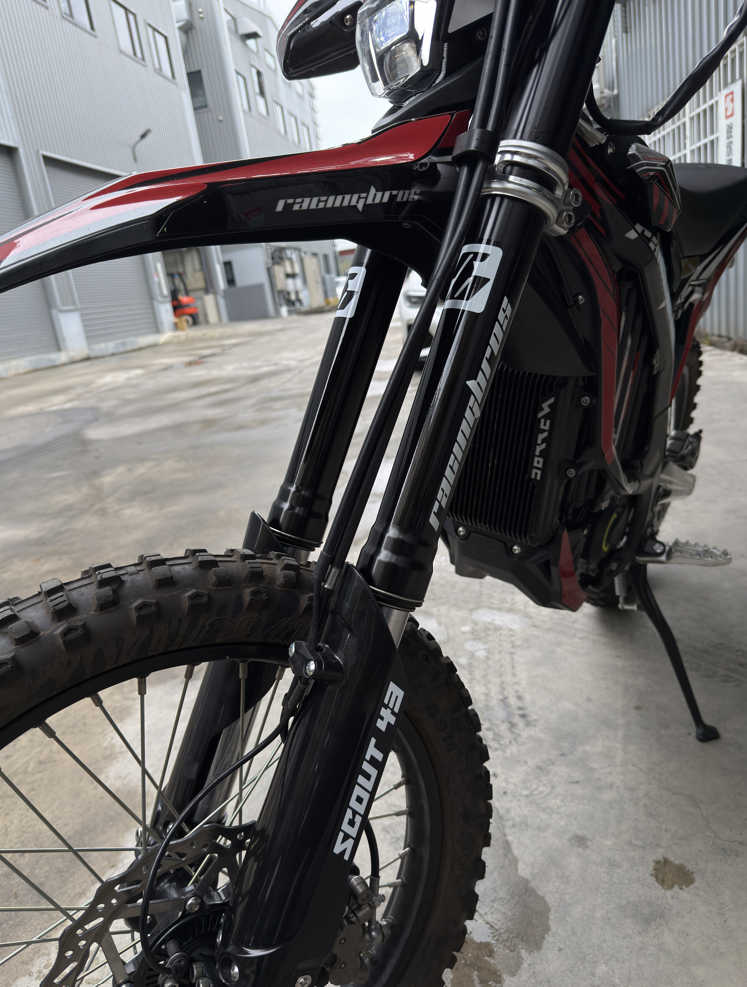

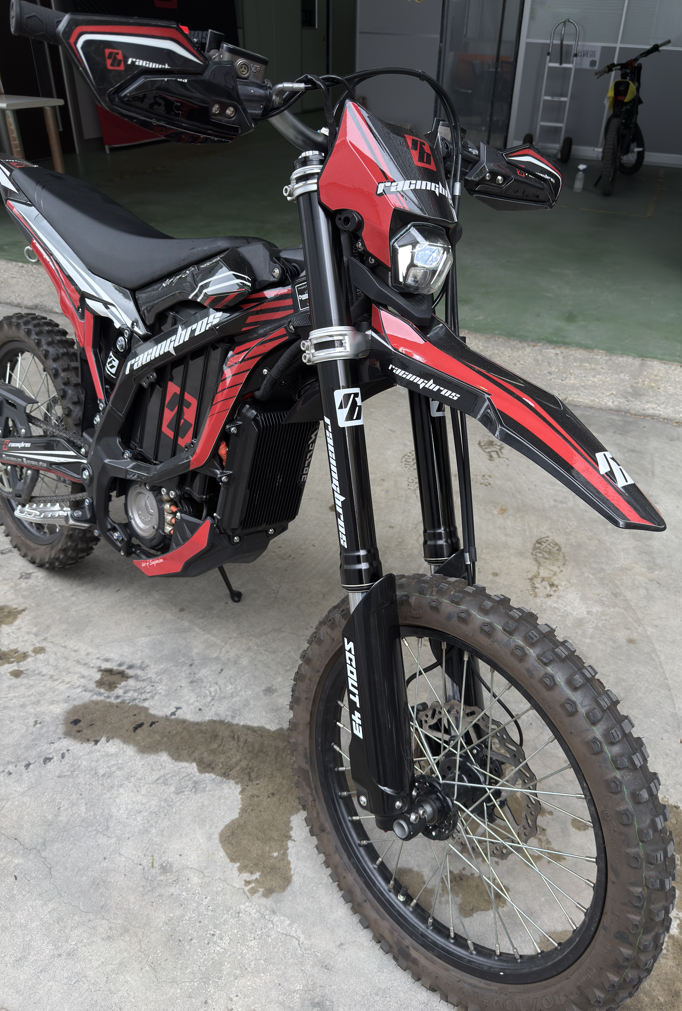

RACINGBROS SCOUT43 for the Surron Ultra Bee

$2,299.00

Sold Out

The 3-way Scepter 25 damper cartridge, along with other RACINGBROS fork chassis and spring technologies designed and tested for more than a decade, have been pulled together to form the all-new SCOUT 43 front fork. This is the first eMoto application offering by RACINGBROS, designed and developed for the Surron Ultra Bee.

FEATURES

Ø43mm high-tensile (>1200MPa) alloy steel stanchions
with super-polished finish
Plug-and-Play Upgrade: direct OEM swap, fits stock brakes & fender (stock caliper adaptor included), 240mm rotor max
Precision-forged 6061-T6 triple clamps & fork bottoms
7050-T651 super high strength upper tubes
3-way sealed cartridge damping system
Hydraulic bottom-out control
Fork leg pressure relief valves
270 mm travel

EXTERNAL ADJUSTMENTS*

Low-Speed Rebound: 21 clicks
High-speed compression: 12 clicks
Low-Speed Compression: 16 clicks
Hydraulic Bottom-Out: 12 clicks
Spring Pre-Load: 10 mm

* Settings may vary. Refer to actual product.

Spring Rate:

8 N/mm (45.7 lb/in)

9 N/mm (51.4 lb/in)

10 N/mm (57.1 lb/in)

11 N/mm (62.8 lb/in)

The 3-way Scepter 25 damper cartridge, along with other RACINGBROS fork chassis and spring technologies designed and tested for more than a decade, have been pulled together to form the all-new SCOUT 43 front fork. This is the first eMoto application offering by RACINGBROS, designed and developed for the Surron Ultra Bee.

FEATURES

Ø43mm high-tensile (>1200MPa) alloy steel stanchions
with super-polished finish
Plug-and-Play Upgrade: direct OEM swap, fits stock brakes & fender (stock caliper adaptor included), 240mm rotor max
Precision-forged 6061-T6 triple clamps & fork bottoms
7050-T651 super high strength upper tubes
3-way sealed cartridge damping system
Hydraulic bottom-out control
Fork leg pressure relief valves
270 mm travel

EXTERNAL ADJUSTMENTS*

Low-Speed Rebound: 21 clicks
High-speed compression: 12 clicks
Low-Speed Compression: 16 clicks
Hydraulic Bottom-Out: 12 clicks
Spring Pre-Load: 10 mm

* Settings may vary. Refer to actual product.


    Spring Rate
    Rider Weight

  Fork Spring Guide Based on Rider Weight

    8 N/mm (45.7 lb/in)
    110 – 154 lb (50 – 70 kg)

    9 N/mm (51.4 lb/in)
    154 – 187 lb (70 – 85 kg)

    10 N/mm (57.1 lb/in)
    187 – 220 lb (85 – 100 kg)

    11 N/mm (62.8 lb/in)
    220 – 243 lb (100 – 110 kg)

      * Rider weight: Total rider weight including all riding gear and protective equipment.

      ** If weight is at the high end of the scale or you are an expert level or higher  rider/racer, choose the next higher rate.

Documents

Scout43 Online Manual | Spring Change Manual
